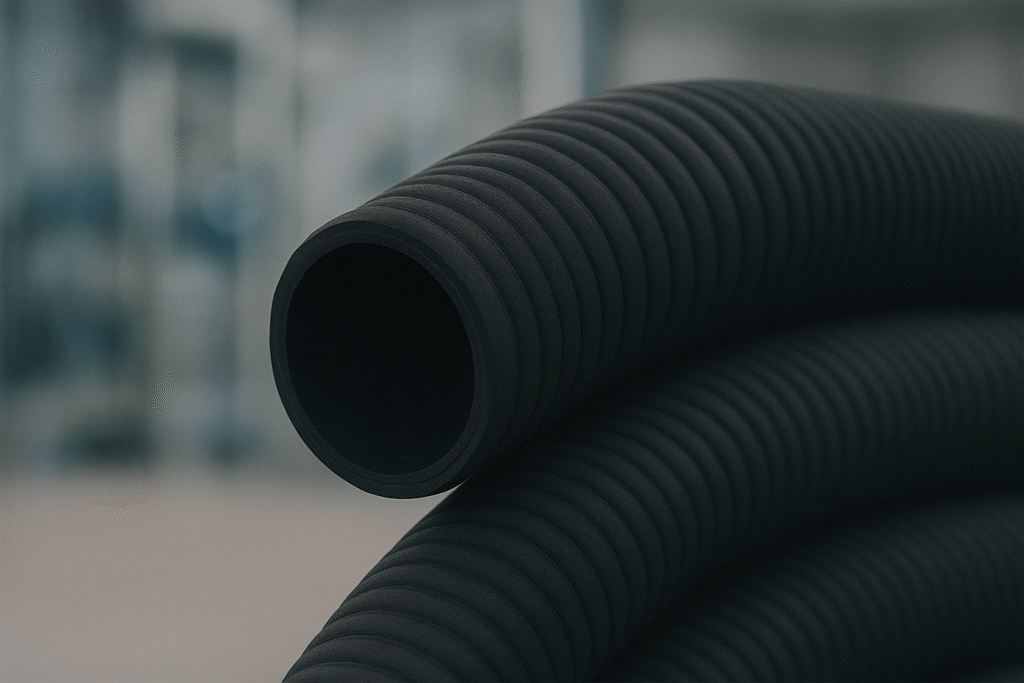

OIL SUCTION HOSE 10 & 20 BAR

Hardwall hose used for the suction of oil and petroleum based products up to 50% aromatic content.

  • Tube: Black color of NBR blend compound. Oil resistant.
  • Cover: Black color of NBR blend compound. Oil, abrasion and weather resistant.
  • Reinforcement: Multiple layers of high tensile synthetic cord and supported with helix wire. Embedded with anti-static copper wire.
  • Temperature: -20°C to +80°C
  • Safety Factor: 3:1

OIL SUCTION HOSE 10 BAR

Code Nominal Inch I.D (mm) O.D (mm) Weight (Kg/m)
ROS-10-019 3/4" 19.0 29.0 0.524
ROS-10-022 7/8" 22.0 32.0 0.589
ROS-10-025 1" 25.4 35.0 0.629
ROS-10-032 1-1/4" 32.0 42.0 0.806
ROS-10-035 1-3/8" 35.0 46.0 0.978
ROS-10-038 1-1/2" 38.0 50.0 1.219
ROS-10-045 1-3/4" 44.0 56.0 1.627
ROS-10-065 2-1/2" 63.5 77.0 2.818
ROS-10-075 3" 76.2 90.0 2.674
ROS-10-090 3-1/2" 89.0 105.0 3.602
ROS-10-100 4" 101.6 110.0 4.511
ROS-10-150 6" 152.4 174.0 8.553
ROS-10-200 8" 203.2 228.0 12.033
Working Pressure (bar)
10
Burst Pressure (bar)
30
Max Length (m)
60

*ROS-10-200;
Max Length : 12m

OIL SUCTION HOSE 20 BAR

Code Nominal Inch I.D (mm) O.D (mm) Weight (Kg/m)
ROS-20-050 2" 50.8 65.0 1.932
ROS-20-065 2-1/2" 63.5 79.0 2.511
ROS-20-075 3" 76.2 92.0 2.999
ROS-20-100 4" 101.6 122.0 4.854
ROS-20-150 6" 152.0 178.0 8.996
ROS-20-200 8" 203.2 230.0 11.538
Working Pressure (bar)
20
Burst Pressure (bar)
60
Max Length (m)
60

*ROS-20-200;
Max Length : 12m
