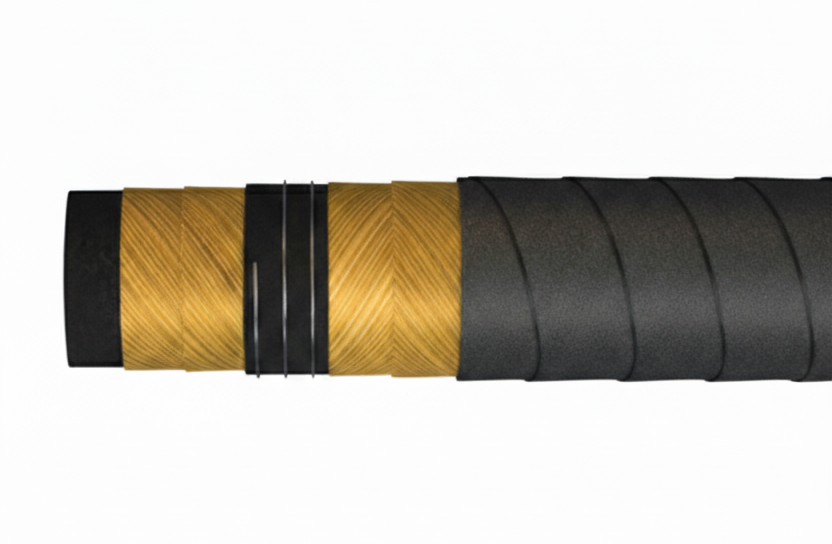

Water Suction Hose 20 Bar
Hardwall hose for suction of water and non-corrosive fluids. Suitable for agricultural, industrial and other applications.
Tube: Black color of SBR blend compound.
Cover: Black color of NR blend compound. Abrasion and weather resistant.
Reinforcement: Multiple layers of high tensile synthetic cord and supported with helix wire.
Temperature: -30°C to +80°C
Safety Factor: 3:1
Code | Nominal Inch | I.D (mm) | O.D (mm) | Weight (Kg/m) |
|---|---|---|---|---|
| RWS200508065 | 2” | 50.8 | 65 | 2.057 |
| RWS200635079 | 2-1/2” | 63.5 | 79 | 2.690 |
| RWS200762092 | 3” | 76.2 | 92 | 3.211 |
| RWS201016122 | 4” | 101.6 | 122 | 5.769 |
| RWS201524178 | 6” | 152.4 | 178 | 10.097 |
| RWS202032230 | 8” | 203.2 | 230 | 12.650 |
Working Pressure (bar)
20
Burst Pressure (bar)
60
Max Length (m)
60
*RWS-20-200; Max Length : 12m
