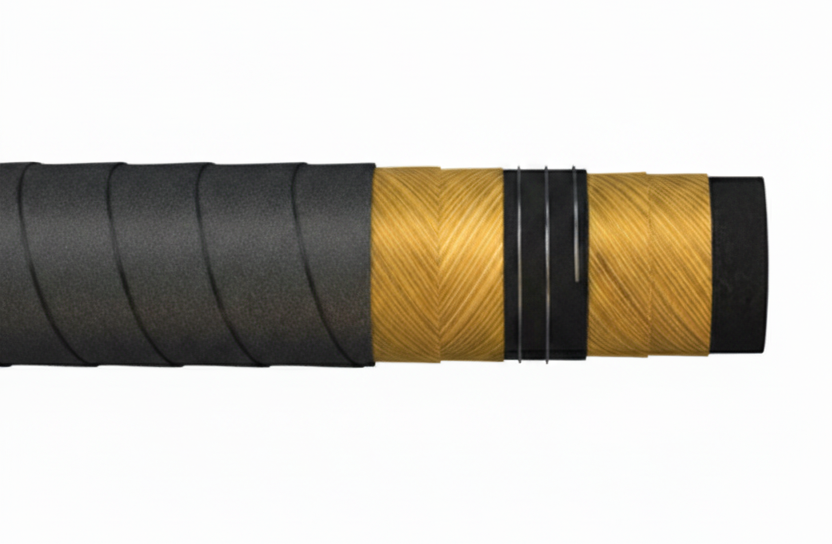

Water Suction Hose 10 Bar
Hardwall hose for suction of water and non-corrosive fluids. Suitable for agricultural, industrial and other applications.
Tube: Black color of SBR blend compound.
Cover: Black color of NR blend compound. Abrasion and weather resistant.
Reinforcement: Multiple layers of high tensile synthetic cord and supported with helix wire.
Temperature: -20°C to +70°C
Safety Factor: 3:1
Code | Nominal Inch | I.D (mm) | O.D (mm) | Weight (Kg/m) |
|---|---|---|---|---|
| RWS100254035 | 1” | 25.4 | 35 | 0.668 |
| RWS100032042 | 1-1/4” | 32 | 42 | 0.860 |
| RWS100038048 | 1-1/2” | 38 | 48 | 0.999 |
| RWS100508062 | 2” | 50.8 | 62 | 1.561 |
| RWS100635077 | 2-1/2” | 63.5 | 77 | 2.326 |
| RWS100762089 | 3” | 76.2 | 89 | 2.626 |
| RWS108890105 | 3-1/2” | 88.9 | 105 | 3.835 |
| RWS101060117 | 4” | 101.6 | 117 | 4.451 |
| RWS101524172 | 6” | 152.4 | 172 | 8.525 |
| RWS102032225 | 8” | 203.2 | 225 | 11.757 |
Working Pressure (bar)
10
Burst Pressure (bar)
30
Max Length (m)
60
*RWS-10-200; Max Length : 12m
