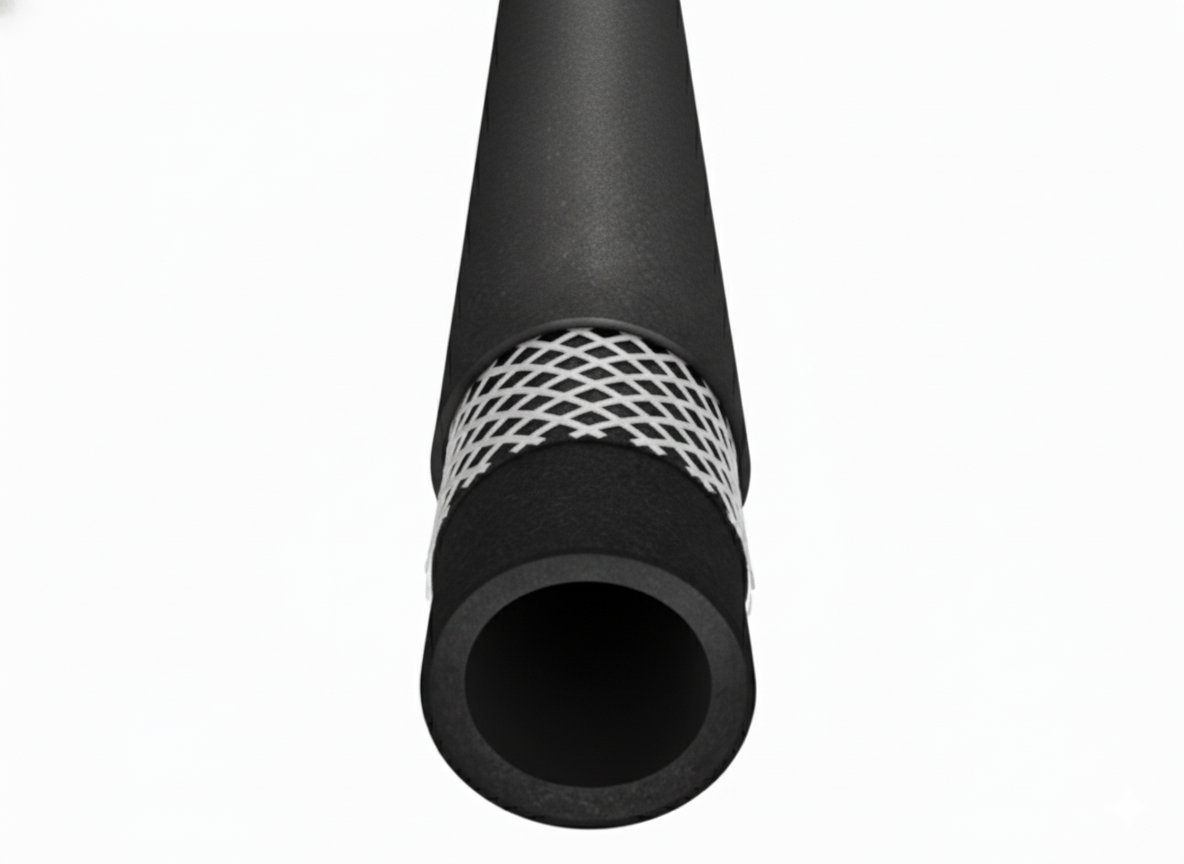

Fuel Injection Hose — 15 Bar
Designed for reliable transfer of gasoline and diesel in automotive and industrial fuel systems.
Tube
Black color of NBR compound. Gasoline and diesel resistant.
Cover
Black color of NBR compound. Fuel, abrasion, and weather resistant.
Reinforcement
High tensile synthetic yarn for superior strength and flexibility.
Temperature & Safety
Temperature range: -30°C to +150°C
Safety factor: 4:1
Code | Nominal Inch | I.D (mm) | O.D (mm) | Weight (Kg/m) |
|---|---|---|---|---|
| RFI150005105 | 3/16” | 5 | 10.5 | 0.110 |
| RFI150065013 | 1/4” | 6.5 | 13 | 0.161 |
| RFI150075146 | 5/16” | 7.5 | 14.6 | 0.201 |
| RFI150095016 | 3/8” | 9.5 | 16 | 0.216 |
| RFI150127020 | 1/2” | 12.7 | 20 | 0.308 |
| RFI150016024 | 5/8” | 16 | 24 | 0.411 |
| RFI150019285 | 3/4” | 19 | 28.5 | 0.586 |
| RFI150254035 | 1” | 25.4 | 35 | 0.757 |
Working Pressure (bar): 15
Burst Pressure (bar): 60
Max Length (m): 100
