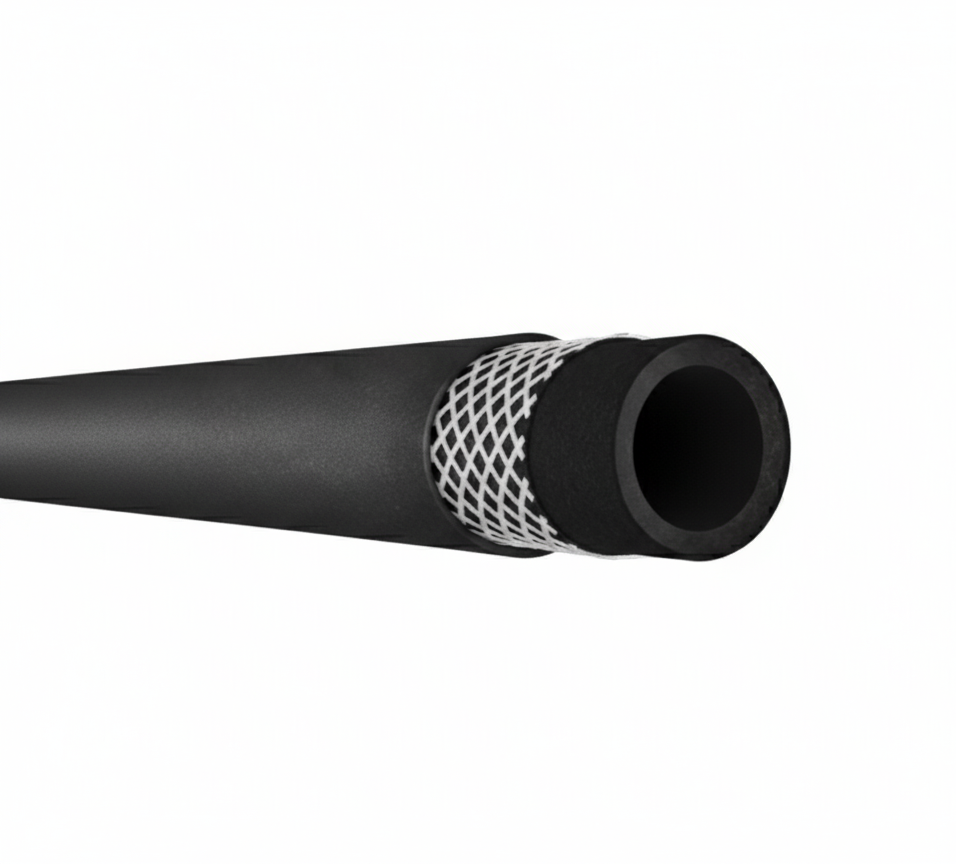

Anti-Static Oil Hose — 20 Bar
Suitable for the transfer of oil and petroleum-based products.
Tube
Black color of NBR blend compound. Oil resistant.
Cover
Black color of NBR/PVC blend compound. Abrasion and weather resistant.
Reinforcement
High tensile synthetic yarn integrated with anti-static wire.
Temperature & Safety
Temperature range: -20°C to +80°C
Safety factor: 3:1
Code | Nominal Inch | I.D (mm) | O.D (mm) | Weight (Kg/m) |
|---|---|---|---|---|
| RAN200063015 | 1/4” | 6.3 | 15 | 0.227 |
| RAN200008016 | 5/16” | 8 | 16 | 0.237 |
| RAN200095018 | 3/8” | 9.5 | 18 | 0.291 |
| RAN200127022 | 1/2” | 12.7 | 22 | 0.399 |
| RAN200016026 | 5/8” | 16 | 26 | 0.516 |
| RAN200019030 | 3/4” | 19 | 30 | 0.672 |
| RAN200022033 | 7/8” | 22 | 33 | 0.751 |
| RAN200254037 | 1” | 25.4 | 37 | 0.905 |
| RAN200032044 | 1-1/4” | 32 | 44 | 1.022 |
| RAN200038053 | 1-1/2” | 38 | 53 | 1.503 |
Working Pressure (bar): 20
Burst Pressure (bar): 60
Max Length (m): 100
