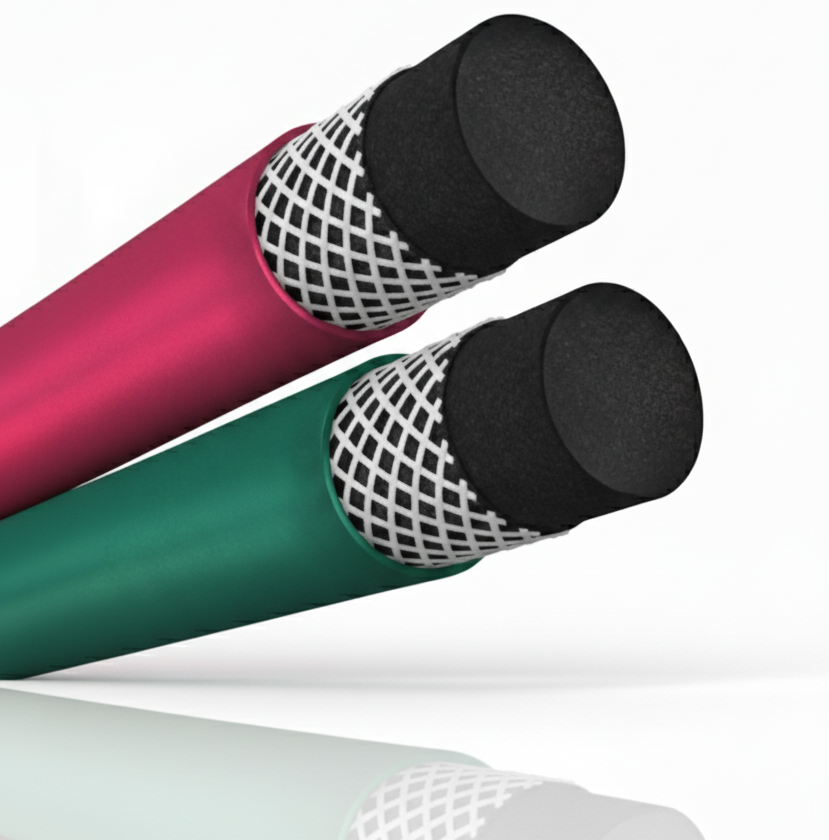

TWIN WELDING HOSE 20 BAR (RM-GRADE)
Twin extruded softwall hose used for the transfer of oxygen and acetylene gas for welding and gas cutting applications.
Tube: Black color of SBR blend compound. High impermeability.
Cover: Green/Pink color of CR compound. Flame, abrasion and weather resistant.
Reinforcement: High tensile synthetic yarn.
Temperature: -40°C to +80°C
Safety Factor: 3:1
Code | Nominal Inch | I.D (mm) | O.D (mm) | Weight (Kg/m) |
|---|---|---|---|---|
| RTW200005012 | 3/16″ | 5 | 12 | 0.328 |
| RTW200063013 | 1/4″ | 6.3 | 13 | 0.356 |
| RTW200008015 | 5/16″ | 8 | 15 | 0.444 |
| RTW200095017 | 3/8″ | 9.5 | 17 | 0.554 |
Working Pressure (bar) 20
Burst Pressure (bar) 60
Max Length (m) 100
